15-15

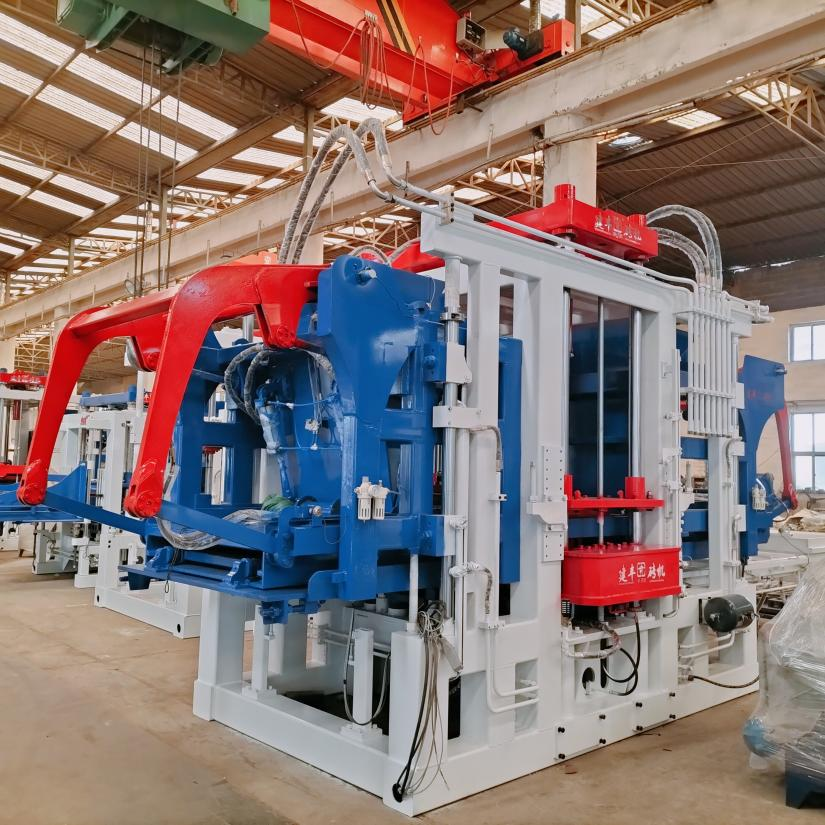

JF-QT15-15 Fully Automatic brick machine

NO.	Main Technical Parameter
1	Actuating shock force	98KN	7	Installed capacity	40KW
2	Frequency of shock	6500(Time/Minute)	8	Weight of brick machine	7T
3	Amplitude	15mm	9	Maximum pressure	10T
4	Noise	95db(A)	10	Pallet size	1200×700× 25(mm)
5	Shock time	8(Second/Time)	11	Operation number	6 persons
6	Overall dimension	6600×3250×3550(mm)	12	Area size	≥5000 m2

Brick Type & Production
Product specification (L ×W× H)mm	Brick picture	Pieces per Mould	Production per hours	Produce period
Solid brick 240* 115*53mm		44 Pieces	7920 Pieces	20Second/Time
Hollow brick 190190390mm		7 Pieces	1260 Pieces	20Second/Time
Interlocking brick 225112.560mm		20 Pieces	3600 Pieces	20Second/Time
Holland brick 200* 100*60mm		30 Pieces	5400 Pieces	20Second/Time
Multi-hole brick 240* 115*90mm		20 Pieces	3600 Pieces	20Second/Time
Border stone 1000* 150*300mm		2 Pieces	360 Pieces	20Second/Time

Category: Fully automatic brick machinery

Description

NO.	Main Technical Parameter
1	Actuating shock force	98KN	7	Installed capacity	40KW
2	Frequency of shock	6500(Time/Minute)	8	Weight of brick machine	7T
3	Amplitude	15mm	9	Maximum pressure	10T
4	Noise	95db(A)	10	Pallet size	1200×700× 25(mm)
5	Shock time	8(Second/Time)	11	Operation number	6 persons
6	Overall dimension	6600×3250×3550(mm)	12	Area size	≥5000 m2

Brick Type & Production
Product specification (L ×W× H)mm	Brick picture	Pieces per Mould	Production per hours	Produce period
*Solid brick 240 11553mm*		44 Pieces	7920 Pieces	20Second/Time
*Hollow brick 190190390mm*		7 Pieces	1260 Pieces	20Second/Time
*Interlocking brick 225112.560mm*		20 Pieces	3600 Pieces	20Second/Time
*Holland brick 200 10060mm*		30 Pieces	5400 Pieces	20Second/Time
*Multi-hole brick 240 11590mm*		20 Pieces	3600 Pieces	20Second/Time
*Border stone 1000 150300mm*		2 Pieces	360 Pieces	20Second/Time

→
